Sentry I Open Air · Aqua Booster
Aqua Booster System
Open-air aeration combined with pressure boosting, designed to deliver steady treated-water pressure where aeration and storage are part of the system.
Overview

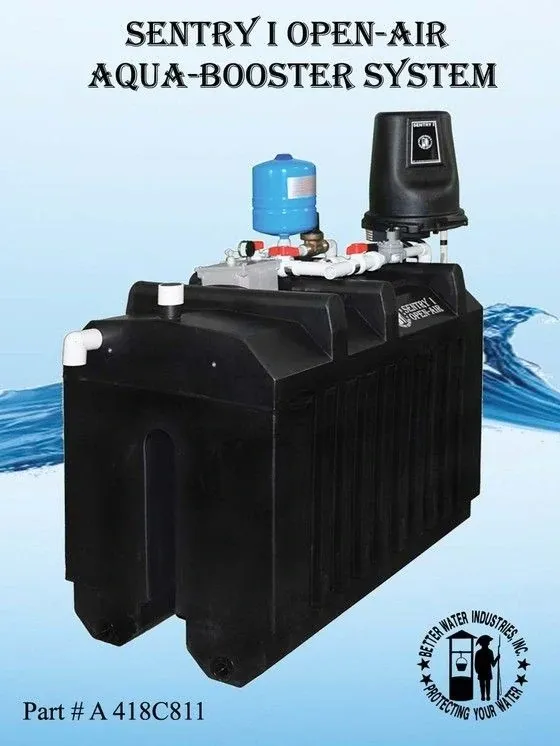

The Sentry I Open-Air Aqua Booster System
The G130 Series • Open-Air w/ Aqua-Booster • 10 GPM System
The Sentry I Open-Air System combines aeration with chlorination to provide superior water quality. The Sentry I Open-Air System adds air to the water with an adjustable venturi as it enters the tank through a solenoid valve that is controlled with an electronic float inside the tank. This air starts the oxidation process.
While the unit fills, the chlorinator dispenses the exact amount of chlorine desired. The chlorine sanitizes the water and finishes the oxidation process getting rid of odors and killing bacteria. The water first flows into the bottom of the first chamber and then flows over into the second chamber where the submersible pump pressurizes the water to the home. The Aqua Booster System boasts an adjustable constant-pressure valve that will deliver city-like water pressure to the home.
This system has three floats, one mechanical safety overflow, one electrical low-level shutdown, and one electrical water level maintaining float. The system is complete with the chlorinator, by-pass, bladder tank, pump, and is pre-wired for an easy install.
"This system is often described as a personal municipality for the home — providing 24/7 protection."
Common applications
Where this system is commonly used
Pressure
Steady delivery
Restores consistent pressure after atmospheric aeration and storage.
Supply
Low-yield wells
Commonly used where treated water is stored before being delivered on demand.
Odor & iron
Combined treatment
Provides the aeration benefits of the Open Air line within one package.
System fit
How it fits into a treatment system
The Aqua Booster System combines the aeration stage with the pressure equipment needed to deliver treated water on demand.
It is frequently specified alongside storage for low-yield wells, and ahead of filtration where iron and sulfur reduction are required.
Key features
Key features
- Open-air aeration with integrated pressure boosting
- Designed for steady treated-water delivery
- Well suited to aeration-plus-storage applications
- Serviceable, dealer-supported components
- Part of the Sentry I Open Air line
